Design of modular protocol stack for Desfire cards

What is a Desfire card?

Let’s think of it as of a contactless memory card with access control.

According to this, DESFire card is a ISO/IEC 14443A compatible card which uses optional ISO/IEC 7816-4 commands. It can store several Applications with different access permissions, with several Files in each Application.

What protocols are in play?

So, Reader must be equipped with ISO/IEC 14443A (part 1 and 2) compliant Reader (reffered to as PCD in ISO/IEC 14443). In our case, this is a MFRC522 module connected over SPI. Driver for this module must be implemented in software.

ISO 14443A parts 3 and 4 must be implemented in the software in order to perform anticollision loop, select a card and activate it. According to the standard, a card is activated by performing an ‘Anticollision’ loop. This allows selection of a particular card (called PICC) from several cards which may be in the RF field generated by the PCD.

DESFire then has it’s own set of commands. These can be sent either wrapped in ISO/IEC 14443-4 data blocks or wrapped in ISO/IEC 7816-4 APDUs. In addition, DESFire card supports several ISO/IEC 7816-4 commands.

What do we need to do with the card?

The first iteration needs only to read UID of the card. Therefore everything above ISO/IEC 14443-3 is unnecessary. However, it is almost certain that in the future we will want to do something more, so the system should be designed to allow easy addition of ISO/IEC 14443-4, ISO/IEC 7816-4 and DESFire protocol library (on top / using encapsulation defined by either of these libraries).

First iteration is using MFRC522 module connected over SPI. It is quite probable, however, that in the future the module may be changed for other type, or the same type can be kept but may be connected over some other interface (MFRC522 supports SPI, I2C and UART).

This implies nice modular design. If done properly, parts of this stack may be reused in some other future projects.

Existing designs

The obvious thing to consider is to use some existing opensource implementation of this stack. Unfortunately most embedded libraries strictly adhere to design principle “fuck modularity, everyone will be using just one MFRC522 over SPI with Arduino reading only UIDs” and implement all the afromentioned funcionality in one file of spaghetti code. Unfortunately such implementations are unusable for us.

One very good implementation is librfid. Unfortunately this library is hard to integrate with ChibiOS and is not designed for embedded environment.

Card stack design

I’ve tried to take the most promising-looking existing implementation and modularize it, but found out that it would be easier to write it from scratch.

It was previously described that we need a modular design since we may be changing components. However, if we overdo it with modularity we will end up with hard-to-use hard-to-maintain code (e.g. everything-independent MFRC522 library then requires design of platform-specific SPI / USART / I2C bindings and everything). A sane compromise must be found.

We are using and will continue using ChibiOS. The whole Reader application will use ChibiOS’s facilities, will be multithreaded and this card stack should be designed with this in mind. It will have to integrate nicely with existing HAL of ChibiOS (which is by itself really nicely porable and can be used independently of ChibiOS/RTOS, since OSAL (Operating System Abstraction Layer) is placed between the RTOS and HAL).

The stack shlould look like this (top to bottom):

• DESFire Protocol Library
• (optional) ISO/IEC 7816-4 Protocol Library
• ISO/IEC 14443-3 and ISO/IEC 14443-4 Protocol Libraries
• MFRC522 driver

The stack must support swapping of implementation of various layers and using several different implementation of layers simultaneously (for example, the device could have 2 different RFID modules connected, this library must allow these two to be used simultaneously). Nice modular separation will also allow for mocking various modules for testing purposes.

This modularity will be achieved by object-oriented design. Each lower layer will create a structure with pointers to functions of the given lower layer for the upper layer to use. This structure will have fixed common API and a single void pointer to a lower-layer specific structure containing data the lower layer needs. Upper layer will then call these functions from the object with the object itself as a first parameter. This will allow encapsulation and usage of several objects from different layers simultaneously. The upper layer may, if necessary, wrap this object to a object of it’s own, to add custom data for working with this object and for exporting this object to even upper layers.

DESFire Protocol Library and ISO/IEC 7816-4 Protocol Library

These are not needed at this point. However it is guaranteed that they can be written easily using Card objects provided by the ISO/IEC 14443 Protocol Library.

ISO/IEC 14443 Protocol Library

This library implements ISO/IEC 14443 part 3 (Initialization and Anticollision) and part 4 (Transmission Protocol). It operates on top of an abstract ISO/IEC 14443 PCD API, which the PCD driver implements (described bellow).

ISO/IEC 14443 defines two types of cards: A and B. Only part A will be implemented, because we don’t need the part B right now (we have no hardware capable of communicating with B-type cards). The library will however be written with part B of the standard in mind so that it can be easilly added later if needed. Names of functions related to A part of the standard will end with A, B-function names will end with B respectively, and common function names will end with AB.

Although the library itself tries to be stateless, Reader is a state machine and Card is a state machine, which respons differently to the same stimuli when in different state. State of these entities is therefore encapsulated in structures Pcd and Card. All functions contain state checks on these objects to prevent undesired behaviour. During initialization both Pcd and Card structures must be passed as parameters to functions, after the card is activated it is bound to a Pcd (until deactivation) and Card structure contains pointer to the Pcd structure, so only Card structure has to be used.

ISO/IEC 14443A defines a way to detect and communicate with multiple cards in the same RF field. All ISO/IEC 14443A cards must support mechanism for detecting multiple cards, however, mechanism for activating and communicating with several cards simultaneously is optional. If PCD wants to activate several cards at once the workflow is as follows:

• Anticollision loop runs, and when it finishes the PCD knows UIDs of all PICCs in the RF field.
• PCD can then request activation of some PICC based on it’s UID, and it can assign it a CID. CID is a unique identifier (between 1-15 inclusive) of a PICC in the RF field.
• PICC then tells the PCD whether it supports the CID feature.
  • If PICC does support CID the PCD sends blocks containing this CID to this PICC and will not use this CID with other PICC while the current PICC is active. It also can’t activate any PICC which does not support CID.
  • If PICC does not support CID the PCD will send blocks without CID and can’t activate any other PICC while the current PICC is active.

The library will therefore obey these rules and:

• If there is no active card it will allow activation of any card.
• If there is an active card which doesn’t support CID it will not allow activation of any other card.
• If there is an active card which supports CID it will allow activation of other card which supports CID (but no more than 15 cards in total).
• If there is an active card which supports CID it will not allow activation of other card which does not support CID.

The library will handle assigning CIDs internally. It will keep state in the Pcd structure.

When the card is selected optionally communication speed parameters may be negotiated. Request for negotiation, however, must be the first thing a PICC receives (CID is taken into account at this stage), because if it receives any other valid data block it will automatically disable the negotiation feature. Support of this feature is also optional. This library contains select functions which will select a PICC and assign a CID (if applicable). After this function is used on a card either set_parameters, set_best_parameters or set_default_parameters functions may be used. These will set the communication parameters for the card and remember them in the Card structure (so that everytime we communicate with a PICC the PCD can be reconfigured accordingly). After these functions are used normal communication with the PICC may start.

ISO/IEC 14443-4 defines a half-duplex request-response communication protocol. When a PCD sends a request it must wait either for the response or for the timeout to occur. It can’t transmit anything to the card during this time. Although not forbidden by the standard, this library will also disallow sending two requests to two different cards (with different CIDs) at the same time, as when this happens there is a risk that the response of the first card will be lost. Not to mention the possible necessity of switching communication speeds for different CIDs. This library therefore exports function send_receiveAB. Use of this function is strongly encouraged as it simplifies the development. This function will block until either the response is received or an error (such as a timeout) occurs. Internally, this function uses semaphores for waiting, and therefore allows other threads to run (it does not busy-wait if underlying OSAL supports it).

For flexibility this library also provides functions send and receive. These functions return immediatelly and have appropriate locking in place so that send cannot be used when some other communication is in progress or receive has not yet been called. Using these complicates application code, so their use is discouraged.

API

• get_cards_in_fieldA(Pcd, Card*): This function performs an anticollision loop as defined in ISO/IEC 14443A and returns an array of Cards. The Card structure will contain an UID of the card. By design, after successfully performing an anticollision on a card the card transitions to an ACTIVE state, and that is a side-effect we don’t really expect of this function, therefore after activating new cards it also HALTs them. This function also allocates new Card objects. If you don’t use them, don’t forget to free_cardAB them.
• construct_cardA(uid, uid_length): This function constructs a new Card structure.
• select_cardA(Pcd, Card*): This function attempts to select a card. The Card structure may come either from get_cards_in_fieldA or may be constructed by user (useful if expected card UID is known in advance). Only uid and uid_length fields of the Card structure are taken into account, this function will properly initialize all other fields. This function will also obey all rules related to CID described above.
• detect_and_select_single_cardA(Pcd, Card*): This function performs an anticollision loop as defined in ISO/IEC 14443A and activates card with the highest UID it finds. This function will not provide any further info about other cards in the field, however, it is a bit faster than using get_cards_in_fieldA and activate_cardA. This function is useful if it is reasonable to assume that only one card will enter the RF field at a time.
• deactivate_cardAB(Pcd, Card*): This function will deselect previously selected card, freeing resources associated with this card and putting the card to a HALT state.
• set_parametersA(Card*, transmit_speed, receive_speed): This function will configure the PICC to use these communication parameters. It will fail if either PICC or PCD doesn’t support these parameters, or if the PICC doesn’t support setting communication parameters in general.
• set_best_parametersA(Card*): This function will set the fastest communication parameters supported by both the PICC and the PCD. If PICC does not support setting parameters in general this function succeeds and leaves the parameters at their default values (because, semantically, that is the best the card can do).
• set_default_parametersA(Card*): This function will skip the parameters negotiation entirely and will just use the defaults.
• send_receiveAB(Card*, buffer*, length): This function will send data to the PICC, wait for the response and return the response in the buffer. If the buffer is not big enough to hold the whole response only part of the response which fits the buffer will be returned and the rest can be obtained using get_responseAB(Card*, buffer*, length). This function will block until the whole response is received.
• sendAB(Card*, buffer*, length): This function sends data to the PICC. It will return immediatelly.
• receiveAB(Card*, buffer*, length): This function will return immediatelly either the received response or error that the response has not yet been received.
• receive_waitAB(Card*, buffer*, length): This function will return the received response and will block until the response is received.
• free_cardAB(Card*): This functions frees the Card structure and all resources associated with it. Make sure it is not used afterwards.

Minor state-inquiring and plumbing functions are ommited for clarity.

Exports to other layers

This library provides standardised object Card for use with other layers. The Card object is a structure which contains pointers to functions send_receiveAB, sendAB, receiveAB and receive_waitAB and one void pointer which other layers shouldn’t touch.

The purpose of the last void pointer is to point at the internal structure used by this library to keep state of the card and other info about the card which other layers should not have to know about. This allows for some other library to provide its own Card structures with completely different internal representation of state and everything.

It goes without saying that functions of this library are designed to work only on Card structures created by this library. If you pass Card structure created by other library as a parameter you will get what you deserve: undefined behaviour.

Memory management

This library wont malloc nor free any Pcd structures.

This library caries sole responsibility for mallocating and freeing its Card structures. User shall not malloc his own Cards nor free any Cards allocated by this library. For each Card allocated by this library also internal structure for internal data is allocated. If the user would free the Card reference to this internal structure would be lost, resulting in a memory leak. Functions construct_cardA(uid, uid_length) and free_cardAB(Card*) should be used instead.

However, it is responsibility of the user to call free_cardAB(Card*) on Card structures he no longer wishes to use.

It is also responsibility of the user to malloc and free data buffers passed to various send and receive functions. This library can be compiled with SAFE_BUFFERS option, which will cause that whenever a function for sending data is called the data buffer is copied to the internal buffer before the function returns. If this library is compiled without the SAFE_BUFFERS option the passed buffer is used directly. This can save memory, but then the user has to ensure that the transmit buffer is not modified nor freed until the response is received.

Threading and thread safety

This library is designed to be used in a multithreaded enviroment. It won’t create any threads for itself, however all functions are thread-safe (if underlying OSAL correctly implements locking primitives), and those that semantically cannot be used concurrently will return appropriate errors.

States and transitions

States and transitions of a Card

Function can be used only if it is indicated on transition edge here, otherwise the function will fail.

Functions deactivate_cardAB and free_cardAB were ommited for clarity. These can be used in any state (except BUSY) and will set the state to IDLE or NONEXISTENT, respectively.

Tests

ISO/IEC 14443 part 4 defines several example communication scenarios which could be used when designing compliance tests. However, implementing those tests is still an open problem.

Although in tests the Pcd can be (by the virtue of modular design) easily mocked the same cannot be said about the OSAL (abstraction on top of the ChibiOS/RT) which this library relies upon. Research will be done in this area.

MFRC522 driver

This layer presents upper layers with an abstract ISO/IEC 14443 PCD API and implements drivers for the MFRC522 module. Since the MFRC522 chip can be connected through multiple interfaces (SPI, USART, I2C) this driver itself must be modular. The lower modules handles adressing, reading and writing registers of the MFRC522 over various interfaces. The upper module, which uses abstract read_register and write_register API handles the business logic of the driver.

Abstract API

The biggest design challenge for this driver is the abstract API. This API has to be abstract enough so that drivers for various readers implementing it can be written, however, it should also be easy to comprehend, should adhere to the ISO/IEC 14443-3 standard and, ideally, easy to implement. Naming convention will be similar to the one used previously: ‘A’-related functions end with A, B-related functions end with B, common functions end with AB.

Transmission methods in ISO/IEC 14443-3 parts A and B are different enough that they won’t share any code. It is therefore possible to design API only for part A and easily add part B later.

Part A of the standard defines transmission of 3 different types of frames:

• Short frame: transmits 7 bits.
• Standard frame: Used for data exchange and can transmit several bytes with parity.
• Bit oriented anticollision frame: 7 byte long frame spit anywhere into two parts. First part is transmitted by the PCD, second part is added by the PICC. It is used during bit-oriented anticollision loop.

ISO/IEC 14443-3 specifies different communication methods (different modulation type / index, different encoding) for part A and B. This driver should support setting these modes, various other communication parameters within these modes as defined by the standard, and should also be able to advertise its capabilities. Communication speeds can’t be arbitrary and are defined by ISO/IEC 14443-4 as 1 etu = 128 / (D x fc), where etu is the elementary time unit (duration of one bit), fc is the carrier frequency (defined in ISO/IEC 14443-2 to be \( 13.56 MHz \pm 7 kHz \)) and D is integer divisor, which may be 1, 2, 4 or 8. This paradoxically means that increasing the divisor also increases the communication speed.

The readers also usually support a number of extended features, not covered by the ISO/IEC 14443 standard. For example, the MFRC522 is able to perform a Mifare authentication using its crypto unit, or a self-test. Upper layers which know how to use these extended features should have access to them, but they should not clutter the main API. That is why each extended feature will have a globally assigned number (in the global abstract header). Then other layers could use these numbers to invoke the extended feature, passing in a “parameter structure”. These structures are also defined globally in the abstract header (although in a different file) to allow their re-use.

Ofted PCDs have a maximum data size they can handle at once. ISO/IEC 14443 standard takes this into account and defines “protocol chaining”, a method to send large data units in multiple smaller frames. The upper library handles this, but for it to know whether to use chaining the PCD must be able to report maximum frame size it can handle.

Taking the above into consideration the API may look like this:

• activateRFFieldAB(Pcd*): Turns the antenna on and creates an unmodulated RF field
• deactivateRFFieldAB(Pcd*): Turns off the antenna
• getSupportedParamsAB(Pcd*): Returns the supported communication parameters and their combinations
• getSupportedFrameSizesA(Pcd*): Returns the maximum supported frame size, both for transmit and receive operations.
• setParamsAB(Pcd*, PcdParams*): Sets the communication parameters.
• transceiveShortFrameA(Pcd*, uint8_t data, Frame* response): Sends a short frame, waits for a response and returns it
• transceiveStandardFrameA(Pcd*, uint8_t* buffer, uint8_t length, Frame* response): Sends a standard frame, waits for a response and returns it. TODO CRC bullshit.
• transceiveAnticollFrameA(Pcd*, uint8_t* buffer, uint8_t length, uint8_t valid_bits, Frame* response): Sends an anticoll frame, waits for a response and returns it.
• transmitShortFrameA(Pcd*, uint8_t data): Sends a short frame. Returns as soon as possible.
• transmitStandardFrameA(Pcd*, uint8_t* buffer, uint8_t length): Sends a standard frame. Returns as soon as possible.
• transmitAnticollFrameA(Pcd*, uint8_t buffer, uint8_t length, uint8_t valid_bits, Frame* response): Sends an anticollision frame. Returns as soon as possible.
• waitForResponseA(Pcd*, Frame* response): This function blocks until either the response is received or timeout occurs. The timeout is counted from the start of the last transmission as defined in the standard.
• getResponseA(Pcd*, Frame* response): This function will return the last received response. It may be used only once per received response.

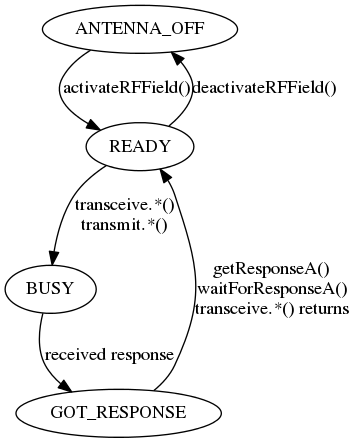

Abstract API State transitions

Driver-specific API

So far only abstract API encapsulated in an Pcd structure was described. This driver-specific API will be used by the board-specific initialization code to initialize the MFRC522 itself and construct the Pcd structure. Implementation of this API is straightforward and will not be covered here.

Threading and memory management

This library will be thread safe. It will carry sole responsibility for allocating and destroying Pcd structures. Basically the same rules apply as for ISO/IEC 14443A protocol library.
